Cups & Lock Pins Tagging Machine

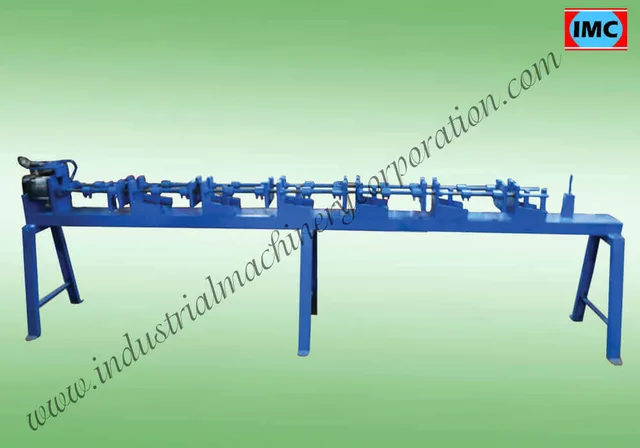

Multi Cup and Lock Pin Tagging Machine product view

Multi Cup and Lock Pin Tagging Machine product view thumbnail

Cups & Lock Pins Tagging Machine for your component and the required production operation.

Application and machine selection

IMC supplies equipment and tooling to position cups and lock pins on cuplock pipe and prepare the agreed initial tack-welding stage. Start the selection with the finished component rather than a general machine label. The application details should include pipe dimensions, cup and pin geometry, spacing pattern and assembly length. A drawing or representative sample helps establish what the proposed configuration needs to achieve.

Working arrangement

The setup review should cover locating stops, clamping fixtures and access for the agreed tack or pin welds. Compare these requirements with the technical data on this page and identify which model and accessories are being offered. Positioning and cup tacking precede the final cuplock welding stage; do not treat the two machines as the same operation. Any quoted output should be related to the actual stock, component and handling arrangement.

Agree the job and supply package

For sample acceptance, specify cup spacing, pin orientation and assembly alignment before final cup welding. Identify the inspection method in the component requirements. Include the batch size, utilities, delivery location and any spare-tool or installation needs. Select the available options and add the quantity to the Quote List; the offer should identify the machine and tools for this defined application.

Information to send with your enquiry

Pipe dimensions
Cup and pin geometry
Spacing pattern and assembly length

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Maximum Length Required

Min And Max Diameter of the Job

Expected Price

Purchase

BUYER INFORMATION

Price and Quotation Requirements

For a multi cup and lock pin tagging machine quotation, send vertical pipe drawing, cup spacing, number of cups and pins, pipe length range and downstream welding arrangement. Confirm the selected configuration, included tooling and delivery requirements with IMC before ordering.

VIDEO REFERENCE

Machine Videos Gallery

No product-specific playlist is stored for this item yet. View IMC machine demonstrations and production videos in the main gallery.

View Machine Videos

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

Multi Cup and Lock Pin Tagging Machine Selection Data

Live Cup Spacing Reference	500 mm
Clamping	Pneumatic clamping/de-clamping referenced on the live page
Process	Position cups and pins, tack/tag, then transfer for final welding
Pipe Diameter / Length	Confirm with job drawing
Number of Cup Stations	Confirm required vertical configuration

Selecting Multi Cup and Lock Pin Tagging Machine

Tagging prepares the cup and pin positions before final welding. Confirm the spacing pattern, number of positions and pipe length range rather than assuming one fixture suits every vertical. Review the transfer to the final welding operation when planning the production line.
