Scaffolding Prop Nut Cup Handle Welding Machine

Scaffolding Prop Nut Cup Handle Welding Machine by Industrial Machinery Corporation

Scaffolding Prop Nut Cup Handle Welding Machine from Industrial Machinery Corporation (IMC) is designed to position and weld prop nut/cup handle components used in scaffolding prop assemblies. The machine is intended to improve repeatability compared with fully manual fixture welding.

Applications

  • Prop nut cup handle welding
  • Scaffolding prop component production
  • Repeatable fixture-based welding
  • Automatic/semi-automatic production configurations

Welding Fixture Requirements

The fixture must match the prop/nut component geometry, handle dimensions, weld locations and required orientation.

Select the Right Machine

Send prop/nut dimensions, handle drawing, weld size/location, material thickness, required output and preferred automation level.

Quality & Repeatability

For production use, consistent component positioning and weld-parameter control should be validated against the approved sample before full production.

VIEW SPECIFICATIONS

Tags

Outer Prop Welding Machine, Inner Prop Welding Machine, Scaffolding Prop Nut Cup Handle Welding Machine
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Available Options


Your selected configuration is stored in the existing Quote List flow for review before enquiry.

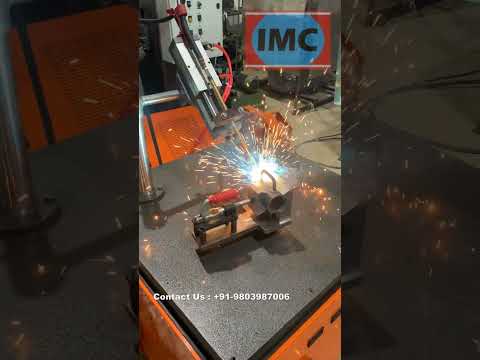

Product Videos

View full playlist on YouTube
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

Prop Nut Cup Handle Welding Machine Selection Data

Prop / Nut DimensionsProvide drawing or sample
Handle GeometryProvide finished component drawing
Weld Location / SizeSpecify weld path and weld size
Production TargetPieces per hour / shift
AutomationConfirm required manual loading, automatic welding and unloading scope
Welding SourceConfirm MIG/CO? source and site electrical supply

The current live page does not publish a numeric model-specific specification table.

Frequently Asked Questions About Scaffolding Prop Nut Cup Handle Welding Machine

It is a fixture-based welding machine used to attach cup/nut handle components in scaffolding prop production.

Send prop/nut dimensions, handle drawing, weld location/size, material and production target.

The machine can be configured for production-oriented welding; the exact loading, clamping and welding automation scope should be confirmed.

The current live page does not show a model-specific numeric capacity table.

The welding fixture and torch path must match the exact prop/nut/handle geometry.
