Industrial Machinery Corporation (IMC) manufactures lathe type PVC pipe threading machines for internal and external pipe threads. The listed range covers pipe diameters from 50 mm to 250 mm with arrangements for 3-metre and 4-metre pipes.

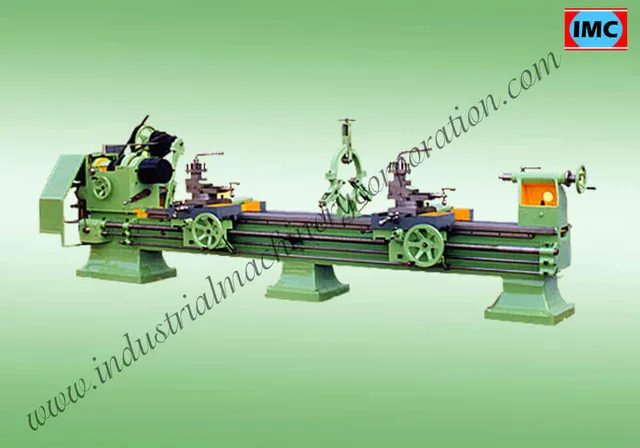

Double-saddle PVC threading arrangement

The machine specification describes a quick-change collet system for loading and unloading different pipe sizes. A double-saddle arrangement allows two operators to work on internal and external threading operations. Confirm the pipe support, tooling and operator arrangement for the intended job.

Select the threading setup

Supply the pipe outside diameter, wall thickness, length and thread drawing. Specify whether the required thread is internal, external or both, together with the pitch, usable thread depth and mating component. The lathe-type setup should be compared with a die-head PVC threader using the actual operations required.

Machine construction and accessories

The specification below describes the bed, headstock, saddle, tool post, apron, tailstock and feed gearbox. Review the included accessories and required workholding with IMC before confirming the machine configuration.

VIEW SPECIFICATIONS

CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Max Thread Length Require

Diameter of the job

Purchase

Expected Price

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

BUYER INFORMATION

Price and Quotation Requirements

For a lathe type pvc pipe threading machine quotation, send pipe OD and wall, 3 m or 4 m length requirement, internal and external thread drawings, tooling and output. Confirm the selected configuration, included tooling and delivery requirements with IMC before ordering.

Request Quotation

VIDEO REFERENCE

Machine Videos Gallery

No product-specific playlist is stored for this item yet. View IMC machine demonstrations and production videos in the main gallery.

View Machine Videos

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

We introduce ourselves as one of the leading manufacturers of precision ad High Quality workshop machinery specializing in all type of Lathe and Pipe Threading Machines.

We have launched our new range of PVC Pipe threading to solve your threading problem quality wise and Production wise, we have the above special purpose lathes with capacity from 50mm. to 250mm for 3 mtr. Pipe and 4 mtr. Pipe. We provide quick change Colet system for quick loading and unloading of pipes of various sizes, with double saddle system for two operators working at a time for inside and outside threading simultaneously.

CONSTRUCTION

The IMC Extra Heavy Duty Lathes are renowned throughout the World to give maximum efficiency and reliable performance under the most severe conditions of service with minimum maintenance cost. IMC Lathes are famous for precision jobs, accuracy and trouble free performance.

IMC Lathes have been designed to cater need of sustained accuracy and superb finishing.

BED: The bed being the foundation of the lathes is carefully designed and is of high grade cast iron.It has cross-ribs to support its walls and three inverted 'VEES' assembled with removable gap for large swing.

HEAD STOCK: The main spindle is of alloy steels with ground finish to give accurate results.The main spindle runs in bush or taper Roller Bearing.

SADDLE: The V ways running on the bed and the slides are most accurately hand scrapped and aligned accurately with bed and the head stock.The saddle is fitted with 'Hand' and 'Automatic Travers' along the bed with steel rack and pinion.It is assembled with cross and upper slide graduated to give desired taper turning.

TOOL-POST: The tool-post is made out of one piece steel block and can hold four different tools at a time and can be swiveled to any desired angle.

APRON: The apron gives movement to the saddle for screw cutting sliding and surfacing by means of enclosed gears and half nut. All gears are of steel.

TAIL STOCK: The tail stock is designed to give maximum strength bolt operation.It has long bearing within the barrel and ensures true alignment.

THREE SPEED GEAR BOX: The three speed gear box is provided with the lathe to obtain coarse, medium and fine cutting ranges,both longitudinal and cross on the feed bar through gears.The lead screw with accurate thread is to be used only for thread cutting and can be engaged of disengaged with a handle provided on the gear box while the other handle is for obtaining the desired three speed.

STANDARD ACCESSORIES: Supplied with the machine:- Face plate one-Catch Plate one-Center two-Center adopter one-Steady Rest one-Follow Rest one-One set of 23 gears-Threading dial one- Motor pully and Motor attachment.

Selecting Lathe Type PVC Pipe Threading Machine

The lathe-type arrangement is useful when the required operations differ from external die-head threading alone. The listed machine uses a quick-change collet and double saddles. Confirm pipe length support, operator arrangement and inside or outside thread details for the intended work.
