Automatic Thread Rolling Machine Manufacturer

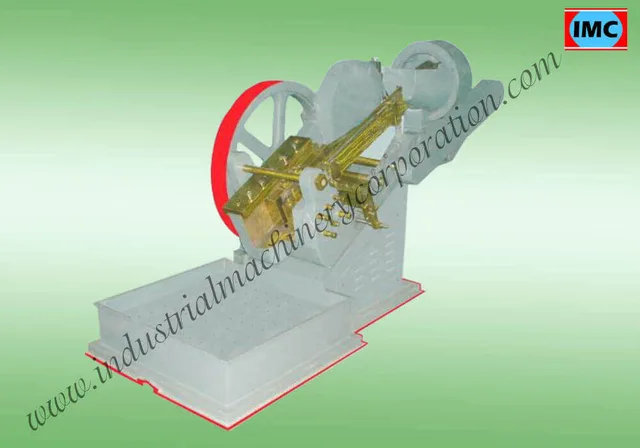

Automatic Cold Thread Rolling Machine - Industrial Machinery Corporation

Automatic Cold Thread Rolling Machine - Industrial Machinery Corporation thumbnail

Automatic Cold Thread Rolling Machine - Industrial Machinery Corporation additional view 1

Automatic Thread Rolling Machine for your component and the required production operation.

Application and machine selection

IMC supplies equipment and tooling to form threads on suitable bolt blanks using an automatic flat-die rolling configuration. Start the selection with the finished component rather than a general machine label. The application details should include fastener drawing, blank material and dimensions, thread profile and batch size. A drawing or representative sample helps establish what the proposed configuration needs to achieve.

Working arrangement

The setup review should cover flat dies, the feeding configuration supplied and size-change arrangements. Compare these requirements with the technical data on this page and identify which model and accessories are being offered. Confirm which feeding and handling operations are included in the offered automatic configuration. Any quoted output should be related to the actual stock, component and handling arrangement.

Agree the job and supply package

For sample acceptance, specify thread fit, formed profile and handling of accepted and rejected components. Identify the inspection method in the component requirements. Include the batch size, utilities, delivery location and any spare-tool or installation needs. Select the available options and add the quantity to the Quote List; the offer should identify the machine and tools for this defined application.

Information to send with your enquiry

Fastener drawing
Blank material and dimensions
Thread profile and batch size

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Maximum Thread Length Require

Min And Max Diameter of the Job

Model No You Are Interested

Expected Price

Purchase

BUYER INFORMATION

Price and Quotation Requirements

For a automatic cold thread rolling machine quotation, send blank drawing, diameter and length, material, thread pitch and length, feeding requirement and batch volume. Confirm the selected configuration, included tooling and delivery requirements with IMC before ordering.

DIRECT MANUFACTURER

Manufactured by Industrial Machinery Corporation

Industrial Machinery Corporation manufactures machinery in Ludhiana, Punjab, India. Ask IMC to confirm the model-specific manufacturing and pre-dispatch inspection records, application trial requirements and commissioning scope. Obtain warranty terms, exclusions, support contacts and spare-tool requirements in the written quotation.

IMC Machine Demonstrations — Confirm Your Configuration

View All Videos

Loading playlist videos...

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

Our Flat die thread rolling machines allows the production of large and small batches of all kinds of threads that can be cold formed, in the most economically way.

Specifications:

Model No.	FDTRM-1	FDTRM-2	FDTRM-3	FDTRM-4	FDTRM-5	FDTRM-6	FDTRM-7
Min. Max. Dia Can Be Rolled	1/16"x1/4"	1/8"x3/8"	1/8"x1/2"	1/4"x5/8"	1/4"x3/4"	1/4"x7/8"	3/8"x1"
Max. Length of Thread	2"	2.1/2"	3"	3"	4"	4"	4"
Dimension of Fixed Dia	3"x2"x1"	5"x2.1/2"x1"	5"x3"x1"	6"x3"x1"	6"x4"x1"	7"x4"x1"	8"x4"x1.1/2"
Dimension of Moving Dia	4"x2"x1"	6"x2.1/2"x1"	6"x3"x1"	7"x3"x1"	7"x4"x1"	8"x4"x1"	9"x4"x1.1/2"
Production in Pieces Per Minute	80	60	60	50	30	30	20
Power Required in H.P.	2	3	5	7.5	10	15	20

Selecting Automatic Cold Thread Rolling Machine

Review the blank-feeding requirement alongside rolling diameter and maximum thread length. The model table provides a starting point; the material and finished thread drawing determine the die setup. Confirm how blank preparation and subsequent inspection fit into the fastener production sequence.

Frequently Asked Questions About Automatic Cold Thread Rolling Machine

Which models are listed?

The published table lists FDTRM-1 through FDTRM-7. Compare each model’s blank diameter, thread length, die dimensions, power and listed output. Confirm combined operating limits for the actual component with IMC.

What details are needed to select tooling?

Send the fastener drawing, material and condition, prepared blank diameter, thread profile, pitch and length, feed arrangement and required output. Ask for application review and a representative trial where required.

Are commissioning and warranty included?

Confirm commissioning, operator training, electrical requirements, warranty scope and exclusions, spare tooling and service arrangements in the written quotation. Inclusion depends on the agreed supply scope.

RELATED PRODUCTS

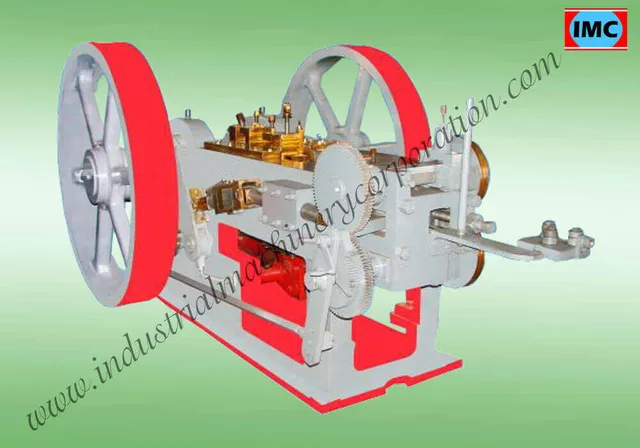

Automatic Cold Heading Machine

Automatic Cold Heading Machine for your component and the required production operation. Application and machine selectionIMC supplies equipment and tooling to form bolt or fastener heads on suitable ...

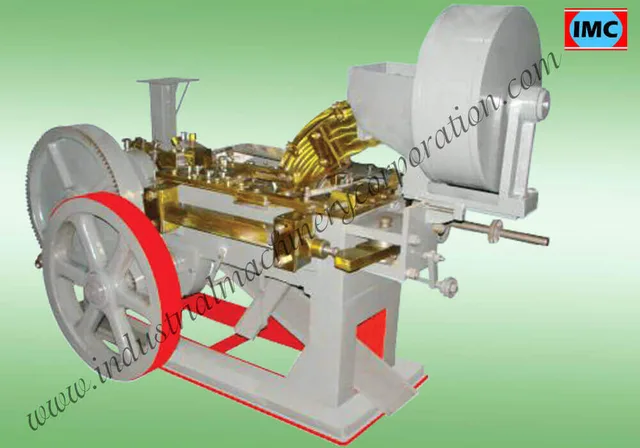

Automatic Bolt Head Trimming And Shank Reducing Machine
