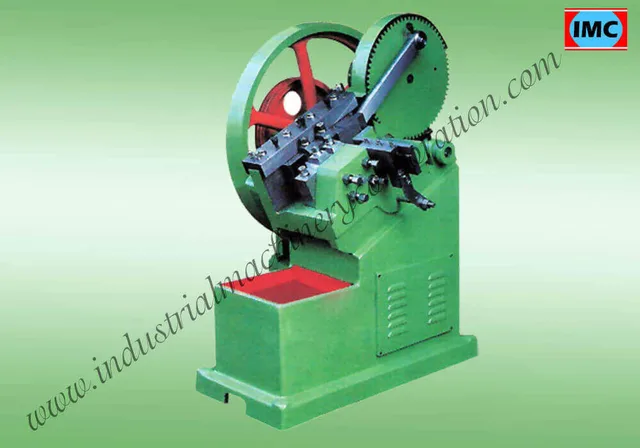

Flat Die Thread Rolling Machine Manufacturer

Flat Die Thread Rolling Machine for your component and the required production operation.

Application and machine selection

IMC supplies equipment and tooling to form external threads on suitable fastener blanks between matched flat dies. Start the selection with the finished component rather than a general machine label. The application details should include blank diameter and material, fastener shape, thread form and thread length. A drawing or representative sample helps establish what the proposed configuration needs to achieve.

Working arrangement

The setup review should cover flat-die geometry, blank presentation, feeding and changeover requirements. Compare these requirements with the technical data on this page and identify which model and accessories are being offered. The blank and flat-die profile should be considered together; this is cold forming rather than thread cutting. Any quoted output should be related to the actual stock, component and handling arrangement.

Agree the job and supply package

For sample acceptance, specify formed thread dimensions, gauge acceptance and the condition of the blank. Identify the inspection method in the component requirements. Include the batch size, utilities, delivery location and any spare-tool or installation needs. Select the available options and add the quantity to the Quote List; the offer should identify the machine and tools for this defined application.

Information to send with your enquiry

• Blank diameter and material
• Fastener shape
• Thread form and thread length

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.
