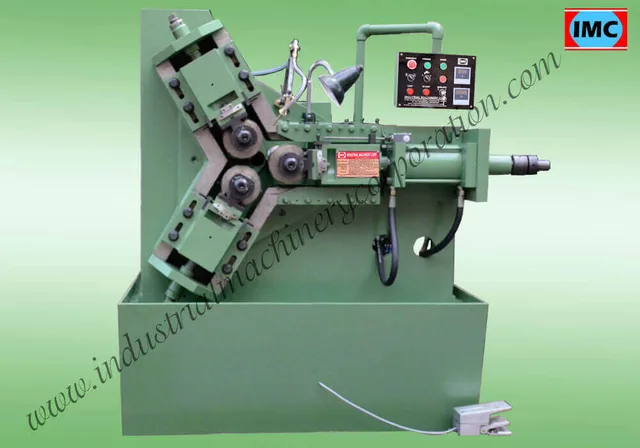

Hydraulic Thread Rolling Machine – 3 Roll

Three Roll Hydraulic Thread Rolling Machine - Industrial Machinery Corporation

Hydraulic Thread Rolling Machine for your component and the required production operation.

Application and machine selection

IMC supplies equipment and tooling to form external threads on suitable pipe workpieces with a matched three-roll hydraulic configuration. Start the selection with the finished component rather than a general machine label. The application details should include pipe diameter, wall thickness, material, thread drawing and desired length. A drawing or representative sample helps establish what the proposed configuration needs to achieve.

Working arrangement

The setup review should cover three-roll dies, mounting fit, pipe support and the intended feed arrangement. Compare these requirements with the technical data on this page and identify which model and accessories are being offered. Pipe wall section and material suitability are important; outside diameter by itself does not establish rolling compatibility. Any quoted output should be related to the actual stock, component and handling arrangement.

Agree the job and supply package

For sample acceptance, specify thread profile, mating-part fit and pipe condition after forming. Identify the inspection method in the component requirements. Include the batch size, utilities, delivery location and any spare-tool or installation needs. Select the available options and add the quantity to the Quote List; the offer should identify the machine and tools for this defined application.

Information to send with your enquiry

  • Pipe diameter
  • Wall thickness
  • Material
  • Thread drawing and desired length

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.


BUYER INFORMATION

Price and Quotation Requirements

For a three roll hydraulic thread rolling machine quotation, send pipe drawing, material, OD and wall, thread profile and pitch, rolled length and production requirement. Confirm the selected configuration, included tooling and delivery requirements with IMC before ordering.

DIRECT MANUFACTURER

Manufactured in Ludhiana, India

Industrial Machinery Corporation (IMC) manufactures the three roll hydraulic thread rolling machine in Ludhiana, Punjab, India for thread forming on hollow pipe components. Share the component drawing and production requirement directly with IMC to confirm machine configuration, tooling and the scope of the quotation.

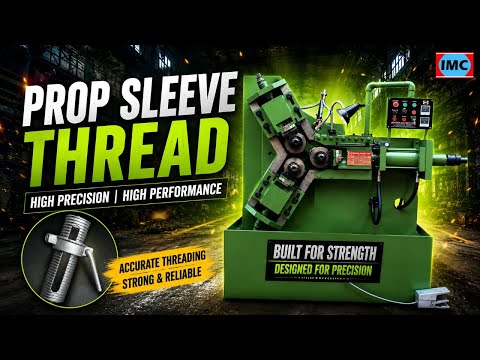

Product Working Videos

View All Videos
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

Technical specifications

The published limits are model-specific and cannot be achieved simultaneously. Confirm the intended job with IMC.

Model
 IMC-3R-25 IMC-3R-50IMC-3R-75
Work RangeOut Side Diameter
Thread Length in Feed
Thread Length Through Feed		(8-25 MM)  (1/2"- 1")
(38 MM)  (1.1/2")
(Indefinite) (Indefinite)		(25-50 MM)   (1"- 2")
(50 MM)  (2")
(Indefinite) (Indefinite)		(32-75 MM)   (1.1/4"- 3")
(75 MM)   (3")
(Indefinite)(Indefinite)
Roll DiesMax. Out Side Dia.
Max. Inside Dia
Spindle Box		140
60
40		140
60
40		170
80
54
MotorFor Roll Spindle3 H.P.3 H.P.7.5 H.P.
3 Phase ACFor Hydraulic System1 H.P.1 H.P.3 H.P.
Coolant Pump
0.1 H.P.0.1 H.P.0.1 H.P.

Selecting Three Roll Hydraulic Thread Rolling Machine

Review pipe OD, wall thickness and material suitability together when selecting a three-roll setup. The dies and blank dimensions must suit the required formed thread. Compare this forming process separately from chaser cutting for scaffolding components.

Frequently Asked Questions About Three Roll Hydraulic Thread Rolling Machine

The listed outside-diameter ranges are 8–25 mm for IMC-3R-25, 25–50 mm for IMC-3R-50 and 32–75 mm for IMC-3R-75. Confirm wall thickness, material, profile and tooling with IMC. Maximum ratings are not a simultaneous operating condition.

Send the actual pipe drawing, wall thickness, material grade, prepared diameter, profile, pitch and formed length. Specify infeed or through-feed and inspection requirements so IMC can assess the configuration.

Ask the quotation to state electrical and site requirements, commissioning, training, warranty exclusions, delivery and service support. Confirm spare-die availability directly with IMC before ordering.
