C Type Power Press Machine Manufacturer

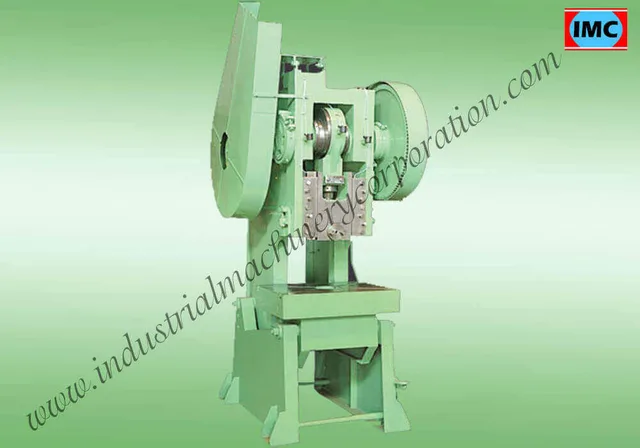

Power Press Machine product view thumbnail

C Type Power Press Machine for your component and the required production operation.

Application and machine selection

IMC supplies equipment and tooling to perform suitable sheet-metal punching, blanking or forming with a C-frame power press. Start the selection with the finished component rather than a general machine label. The application details should include sheet grade and thickness, component geometry, operation and die requirements. A drawing or representative sample helps establish what the proposed configuration needs to achieve.

Working arrangement

The setup review should cover tonnage, stroke, shut height, bed dimensions and access in the C-frame arrangement. Compare these requirements with the technical data on this page and identify which model and accessories are being offered. The open-front arrangement supports access, but the actual die and loading method must suit the selected press. Any quoted output should be related to the actual stock, component and handling arrangement.

Agree the job and supply package

For sample acceptance, specify finished component dimensions and the edge or formed condition specified. Identify the inspection method in the component requirements. Include the batch size, utilities, delivery location and any spare-tool or installation needs. Select the available options and add the quantity to the Quote List; the offer should identify the machine and tools for this defined application.

Information to send with your enquiry

Sheet grade and thickness
Component geometry
Operation and die requirements

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Maximum Thickness of Job

Maximum Force Required In Tons

Model No You Are Interested

Expected Price

Purchase

BUYER INFORMATION

Price and Quotation Requirements

For a c type power press machine quotation, send component drawing, material thickness, pressing operation, die dimensions, tonnage requirement and production target. Confirm the selected configuration, included tooling and delivery requirements with IMC before ordering.

VIDEO REFERENCE

Machine Videos Gallery

No product-specific playlist is stored for this item yet. View IMC machine demonstrations and production videos in the main gallery.

View Machine Videos

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

C Type Power Press Machine Specifications

Parameter	5T	10T	20T	30T	50T	75T	100T	150T	200T	250T
Bed Size	275×375	300×450	375×525	400×600	500×750	550×800	600×900	700×1000	800×1150	850×1200
Bed to Ram Bottom	225	250	250	300	375	400	450	465	500	550
Stroke Length	50	50	60	80	95	110	125	150	160	175
Crank Shaft Diameter	65	70	80	90	110	125	150	175	200	240
Strokes / Minute	60	55	55	50	50	45	40	40	35	30
Power Required (HP)	1	2	2	3	5	7.5	10	15	20	25
Motor RPM	1440	1440	1440	1440	1440	1440	1440	1440	1440	1440

Selecting C Type Power Press Machine

Compare tonnage, bed area, stroke and die clearance for the actual tooling. The open-front layout affects access and part handling, while machine selection still depends on the operation. Review the required control and guarding arrangement as part of the proposed setup.

Frequently Asked Questions About Power Press Machine

What is a Power Press Machine?

A Power Press Machine uses mechanical force to perform operations such as punching, blanking, stamping and forming.

What C Type power press range does IMC list?

The live IMC table lists C Type models from 5 ton to 250 ton.

Why choose a C Type power press?

A C-frame gives open access to the die area, which can be useful for loading, tooling and many press-shop operations.

What information is required for a quotation?

Send tonnage, material thickness, operation, die size, bed dimensions, stroke and production cycle.

Does IMC also manufacture H Type presses?

Yes. A separate H Type Power Press Machine page covers IMC's H-frame range.

RELATED PRODUCTS

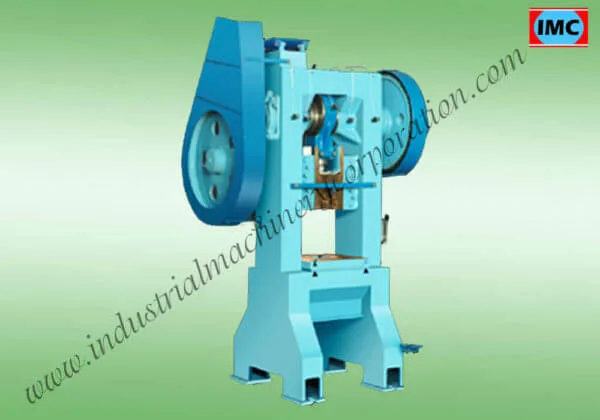

H Type Power Press Machine
