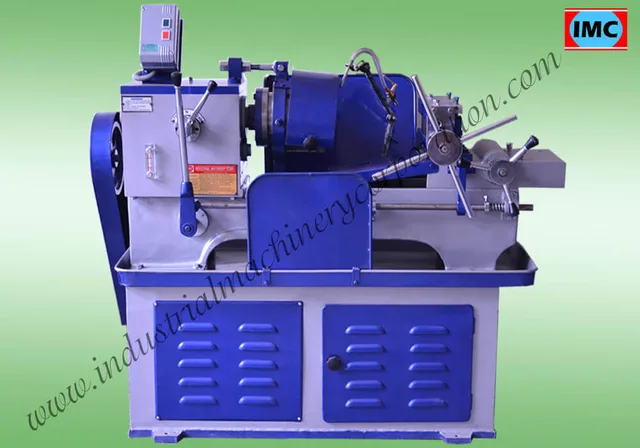

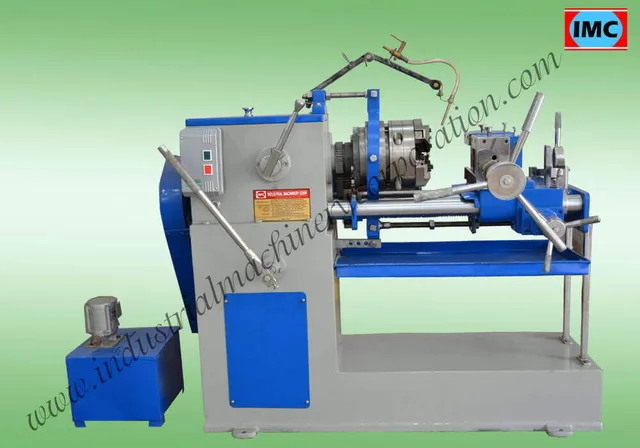

The PVC Pipe Threading Machine is use to cut the external threads with the help of Tangential chaser. Chaser is use as a cutter in machine. It remain still, Die-head rotates and different type of threads can be cut parallel and taper such as BSPT, BSW, BSP, NPT, UNF, METRIC, UNC, ACME, BSF Threads.
The PVC Pipe Threading Machine is use to cut the external threads with the help of Tangential chaser. Chaser is use as a cutter in machine. It remain still, Die-head rotates and different type of threads can be cut parallel and taper such as BSPT, BSW, BSP, NPT, UNF, METRIC, UNC, ACME, BSF Threads. The Machine mainly consists the following:-
Base
Head Stock
Saddle
Bed or Pillar Type Clamping Vice
Die Head.
DESIGN AND WORKMANSHIP: The Industrial Machinery Corporation thread cutting machines are designed to produce quality threads within the to lerance for which they were intended.
HEAD STOCK: A heavy duty geared Head Box is of best quality casting providing support to the spindle bearings. The box is of gear type, lubricated, fitted with three extra heavy duty bearings.
THE BED: The bed of pillar type Threading Machine having two pillars made of best quality steel nicely finished and duly hard chrome plated in the most modern hard chrome plating unit.
THE SADDLE: The Saddle is fitted on two pillars very precisely. It runs on pillars very smoothly and accurately to the Head Stock alignment.
The APRON: The apron gives movement to the saddle with head transfer along with pillars through steel rack and pinion arrangements. It's all gears are made of best quality steel.
VICE JAWS: The vice jaws made from the best quality alloy steel are fitted on the saddle well aligned with the head stock center fitted in a heavy duty box type vice. The jaws are heat treated. The movements of jaws are controlled by a screw on the saddle.
Range of IMC PVC Pipe Threading Machines and Die Heads.
1/4" to 1" do/-
3/8" to 1.1/2" do/-
1/2" to 2.1/2" do/-
| Model | 3/8" to 2" (10MM to 50MM) | 1/2" to 2.1/2" (12MM to 65MM) | 1" to 4" (25MM to 100MM) | 2.½" to 6" (65MM to 150MM) | 4" to 8" (100MM to 200MM) | 8" to 10" (200MM to 250MM) |
| Saddle Movement | 10"- 12" | 16" | 10“ - 12" | 8" | 8" | 8" |
| Spindle Speed Range | 127-180 | 60-90-120 | 40-75-115 | 25-50 | 25-50 | 10-20-30 |
| Number of Spindle Speed | 2 | 3 | 3 | 2 | 2 | 3 |
| Threading Capacity | 3/8" to 2" | 1/2" to 2.1/2" | 1 to 4" | 2.1/2" to 6" | 4" to 8" | 8" to 10" |
| Production per Hour | 100-120 | 70-90 | 35-40 | 20-25 | 15-20 | 15-20 |
| H.P. Required | 3 H.P. | 7.5 H.P. | 12.5 H.P. 960 | 15 H.P. 960 | 20 H.P. 960 | 30 H.P. 960 |
| Lead Screw | Provided | Provided | Provided | Provided | Provided | Provided |
| Weight (KG) Approx. | 550 | 990 | 1600 | 1900 | 2500 | 5000 |
