Scaffolding Pipe Threading Machine Manufacturer

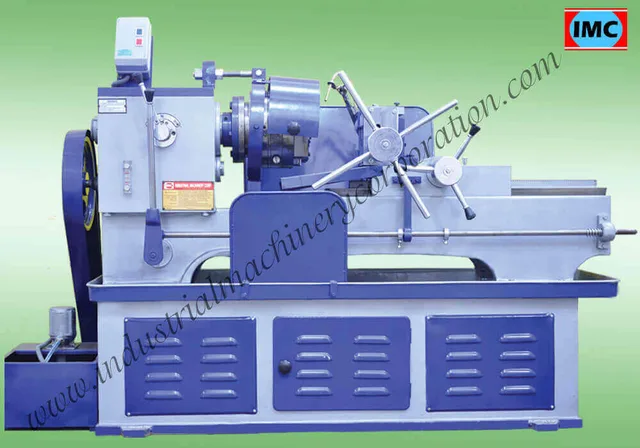

Scaffolding Pipe Threading Machine - Industrial Machinery Corporation

Scaffolding Pipe Threading Machine for your component and the required production operation.

Application and machine selection

IMC supplies equipment and tooling to prepare external cut threads on suitable scaffolding pipe ends for their mating components. Start the selection with the finished component rather than a general machine label. The application details should include tube diameter, wall thickness, material, thread pitch, threaded length and mating nut drawing. A drawing or representative sample helps establish what the proposed configuration needs to achieve.

Working arrangement

The setup review should cover pipe vice and supports, compatible thread-cutting chasers and available travel. Compare these requirements with the technical data on this page and identify which model and accessories are being offered. Keep thread cutting and thread rolling distinct when selecting the equipment and the starting pipe section. Any quoted output should be related to the actual stock, component and handling arrangement.

Agree the job and supply package

For sample acceptance, specify fit with the intended scaffolding component and the specified thread dimensions. Identify the inspection method in the component requirements. Include the batch size, utilities, delivery location and any spare-tool or installation needs. Select the available options and add the quantity to the Quote List; the offer should identify the machine and tools for this defined application.

Information to send with your enquiry

  • Tube diameter
  • Wall thickness
  • Material
  • Thread pitch
  • Threaded length and mating nut drawing

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.


BUYER INFORMATION

Price and Quotation Requirements

For a scaffolding pipe threading machine quotation, send prop pipe drawing, OD and wall thickness, material, thread form, thread length and daily production. Confirm the selected configuration, included tooling and delivery requirements with IMC before ordering.

Scaffolding Pipe Threading Machine Videos

View All Videos
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

Parameter1/2"–2.1/2" (12–65 mm) Bed Type1/2"–2.1/2" (12–65 mm) Pillar Type
Saddle Movement24"16"
Spindle Speed Range45–9060–90–120
No. of Speeds23
Threading Capacity1/2"–2.1/2"1/2"–2.1/2"
Production / Hour25–4035–60
Motor7.5 H.P.7.5 H.P.
Lead ScrewOptionalOptional
Approx. Weight990 kg1100 kg

Process Note

This product is a thread-cutting machine. Scaffolding pipe thread rolling uses rolling dies and is a separate cold-forming process.

Spindle-speed clarification: The published spindle-speed row does not state its unit. Confirm the unit and available speeds for the selected configuration with IMC.

Selecting Scaffolding Pipe Threading Machine

Confirm whether the prop component requires a cut thread or a rolled thread. This page covers chaser cutting. Compare bed and pillar models using pipe wall thickness, thread length and production needs; hydraulic three-roll forming is a separate equipment choice.

Frequently Asked Questions About Scaffolding Pipe Threading Machine

It is a machine used to cut external threads on scaffolding pipes and related components with a die head and suitable thread-cutting tooling.

The stored bed-type and pillar-type models both list 1/2–2.1/2 inch, approximately 12–65 mm, threading capacity.

The pillar-type model lists approximately 35–60 pieces per hour versus 25–40 pieces per hour for the bed-type model.

Thread cutting removes material with chasers. Thread rolling forms the thread by displacing material with rolling dies.

Selection depends on pipe size, thread length, production target, available space and preferred machine arrangement.

Send pipe diameter, wall thickness, material, thread standard, thread length and target production per hour.
