Rebar Threading Machine Manufacturer
Select the required model and specifications to request your quotation.
Price and Quotation Requirements
For a rebar threading machine quotation, send bar diameter and grade, coupler drawing, thread standard, pitch, engagement length and site or factory requirement. Confirm the selected configuration, included tooling and delivery requirements with IMC before ordering.
Manufactured in Ludhiana, India

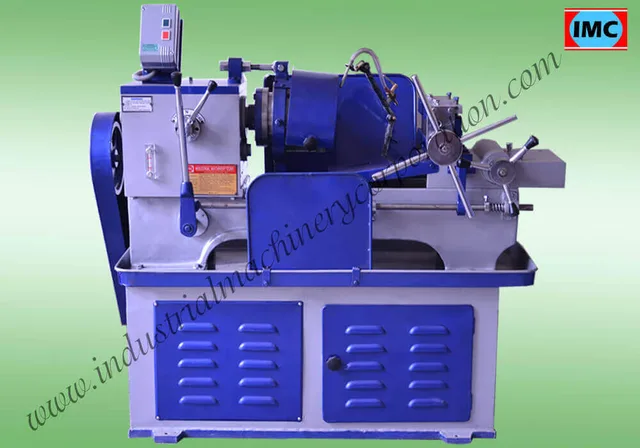

Industrial Machinery Corporation (IMC) manufactures the rebar threading machine in Ludhiana, Punjab, India for cut threading of reinforcement bar ends. Share the component drawing and production requirement directly with IMC to confirm machine configuration, tooling and the scope of the quotation.
Rebar Threading Machine Videos
View All Videos
Loading playlist videos...
Technical Specifications
Model data and technical details supplied for this product. Final configuration can be confirmed against your application.
The following model data is based on the technical information stored for this product. Final capacity and thread result should be confirmed against the actual bar, tooling and application before order confirmation.
Rebar Threading Machine Models & Specifications
| Specification | 1/4" to 1" (6–25 mm) Bed Type | 3/8" to 1.1/2" (10–40 mm) Bed Type | 1/2" to 2.1/2" (12–65 mm) Bed Type |
|---|---|---|---|
| Saddle Movement | 10" | 13" | 22" |
| Spindle Speed Range | 75–140 | 75–140 | 45–90 |
| Number of Spindle Speeds | 2 | 2 | 2 |
| Threading Capacity | 1/4" to 1" | 3/8" to 1.1/2" | 1/2" to 2.1/2" |
| Production per Hour | 60–80 | 60–80 | 70–90 |
| H.P. Required | 3 H.P. | 3 H.P. | 7.5 H.P. |
| Lead Screw | Optional | Optional | Optional |
| Weight (Approx.) | 500 kg | 550 kg | 990 kg |
Thread Forms & Tooling
The existing product information lists Metric, BSP, BSPT, NPT, UNF, UNC, BSW, ACME and BSF thread forms. Availability depends on the selected machine, die head, chaser profile and job size, so the required thread standard should be confirmed before quotation.
Main Machine Components
- Base
- Head stock
- Saddle
- Bed or pillar-type clamping vice, depending on configuration
- Die head and suitable thread-cutting chasers
Choosing the 10–40 mm Model
For jobs in the 10–40 mm range, the stored product data identifies the 3/8" to 1.1/2" bed-type model with 13" saddle movement, 75–140 spindle-speed range, 3 H.P. power requirement and an indicated production range of 60–80 pieces per hour. Actual output depends on the job, thread length, material and operator setup.
Spindle-speed clarification: The published spindle-speed row does not state its unit. Confirm the unit and available speeds for the selected configuration with IMC.
Selecting Rebar Threading Machine
Match the rebar thread to the coupler drawing and specified gauge. This product uses chaser thread cutting; it should not be selected on the assumption that it is a rib-peeling thread roller. Confirm whether end preparation or upsetting is required for the intended connection system.
Frequently Asked Questions About Rebar Threading Machine
A Rebar Threading Machine cuts external threads on TMT or reinforcement bars. On the machine described on this page, the bar is clamped while a rotating die head and suitable chasers cut the required thread.
The stored product data lists three bed-type ranges: approximately 6–25 mm, 10–40 mm and 12–65 mm. Final capacity depends on the selected model, die head, chasers and application.
This page describes a chaser-type thread-cutting machine using the chasing method. Thread rolling is a different process that forms the thread by material displacement rather than cutting.
The existing product information lists Metric, BSP, BSPT, NPT, UNF, UNC, BSW, ACME and BSF. The exact thread form and size must be confirmed against the selected tooling and machine configuration.
The product specification data lists approximately 60–80 pieces per hour for the 6–25 mm and 10–40 mm bed-type models, and 70–90 pieces per hour for the 12–65 mm model. Actual output depends on job size, thread length, material and setup.
The stored specification identifies the 3/8 inch to 1.1/2 inch bed-type model for approximately 10–40 mm capacity, with 13 inch saddle movement, 75–140 spindle-speed range and 3 H.P. power requirement.
Yes. Share the bar diameter, material or TMT grade, thread form, thread length, production target, electrical standard and coupler or component drawing so the machine and tooling can be reviewed before quotation.
Send the bar diameter, material grade, required thread standard, thread length, quantity or production target, electrical supply and any coupler or component drawing. You can also select the relevant fields in the Available Options section on the product page.
