Circular Thread Rolling Dies Manufacturer

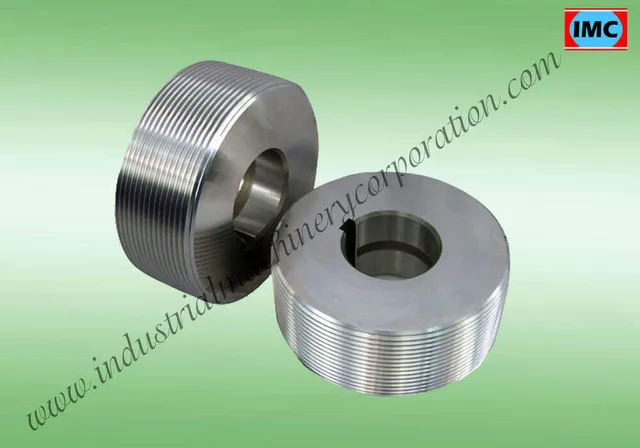

Circular Thread Rolling Dies for your component and the required production operation.

Application and machine selection

IMC supplies equipment and tooling to form the required thread profile on compatible rolling equipment using matched circular dies. Start the selection with the finished component rather than a general machine label. The application details should include machine model, die mounting dimensions, blank material and finished thread drawing. A drawing or representative sample helps establish what the proposed configuration needs to achieve.

Working arrangement

The setup review should cover bore and mounting interface, two- or three-die arrangement and infeed or through-feed selection. Compare these requirements with the technical data on this page and identify which model and accessories are being offered. Infeed and through-feed arrangements have different setup requirements; identify the intended thread length and feed method. Any quoted output should be related to the actual stock, component and handling arrangement.

Agree the job and supply package

For sample acceptance, specify the rolled thread profile, gauge acceptance and die compatibility on the machine. Identify the inspection method in the component requirements. Include the batch size, utilities, delivery location and any spare-tool or installation needs. Select the available options and add the quantity to the Quote List; the offer should identify the machine and tools for this defined application.

Information to send with your enquiry

• Machine model
• Die mounting dimensions
• Blank material and finished thread drawing

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.
