TMT Bar Forging Machine Manufacturer

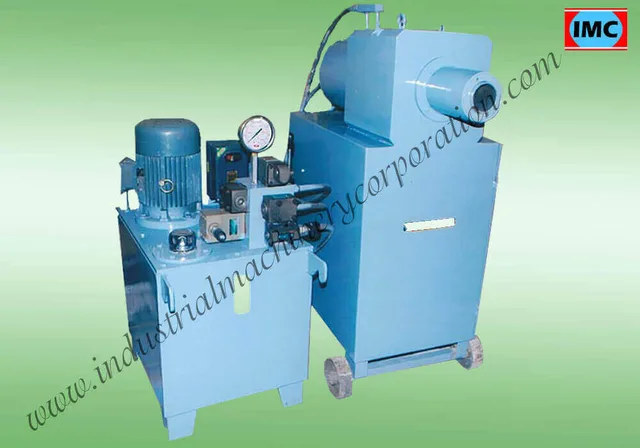

TMT Bar Forging Machine by Industrial Machinery Corporation

TMT Bar Forging Machine by Industrial Machinery Corporation thumbnail

TMT Bar Forging Machine from Industrial Machinery Corporation (IMC) is designed to forge and enlarge TMT/rebar ends before downstream coupler processing. IMC manufactures the hydraulic machine in Ludhiana, India for reinforcement and rebar-coupler production.

The live technical data references a 220-ton, 40 mm capacity hydraulic configuration with separate clamping and forging cylinders, forging block/holder, three die sets, punch and high-/low-pressure power-pack arrangement.

TMT Bar Forging Machine Applications

TMT/rebar end forging
Rebar coupler preparation
Reinforcement processing
High-force hydraulic bar forming

How TMT Bar End Forging Works

The bar is clamped and axial hydraulic force is applied through the forging tooling to enlarge or form the bar end according to the required downstream coupler/threading process.

Select the Right Forging Machine

Send maximum bar diameter, bar grade, required forged diameter/length, cycle rate and final coupler process. IMC can then review force, tooling and power-pack requirements.

Related equipment: Coupler Making Machine and Rebar Threading Machine.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Maximum Length Required

Min And Max Diameter of the Job

Model No You Are Interested

Quantity Required

Expected Price

Purchase

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube

Rebar Forging Machine Manufacturer or TMT Bar Forging

Leading Innovation: Premier Manufacturer of Rebar Forging Machines

Perfect Finishes: Discover Our Rebar Chamfering Machine

TMT Rebar Steel Threading Machine | Manufacturer by IMC

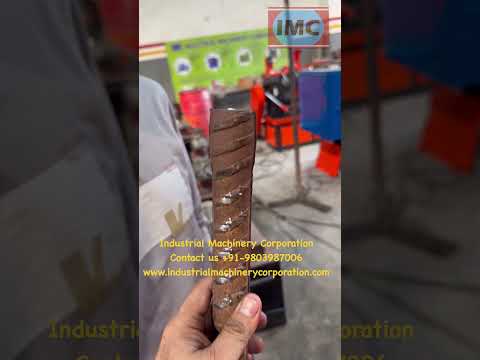

TMT Bar Cold Forging Machines | #threadingmachine #machine #industrialmachinery #manufacturing

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

TMT Bar Forging Machine Technical Configuration

Referenced Hydraulic Force	220 tons
Referenced Capacity	40 mm
Main Cylinders	Double-stroke, double-acting hydraulic clamping cylinder and forging cylinder
Forging Tooling	Forging block with holder, 3 die sets and punch
Power-Pack Reference	3 × 7.5 H.P., dual high-pressure / low-pressure arrangement

Final force, tooling and bar capacity must be confirmed against the actual rebar grade and forging requirement.

Frequently Asked Questions About TMT Bar Forging Machine

What is a TMT Bar Forging Machine?

It is a hydraulic machine used to forge and enlarge TMT/rebar ends for downstream coupler and reinforcement processing.

What capacity is referenced on the live page?

The live IMC data references a 220-ton, 40 mm hydraulic configuration.

Why is the bar end forged?

Forging can increase or prepare the bar-end section for a required coupler/threading production process.

What details are needed for selection?

Send bar diameter, material grade, required forged dimensions, cycle target and final downstream process.

Is tooling included?

The live configuration references a forging block, holder, three die sets and a punch; final scope must be confirmed in the quotation.

RELATED PRODUCTS

Scaffolding Pipe Punching Machine

Scaffolding Pipe Punching Machine from Industrial Machinery Corporation (IMC) is designed for automatic high-precision hole making in scaffolding and prop pipes. The machine is manufactured in Ludhian ...

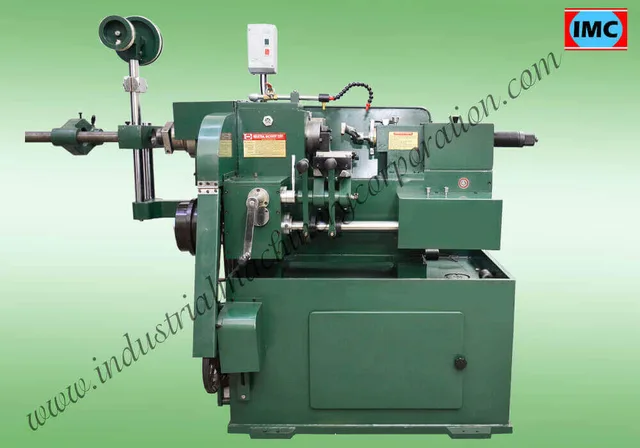

Coupler Making Machine
